Spiral spring

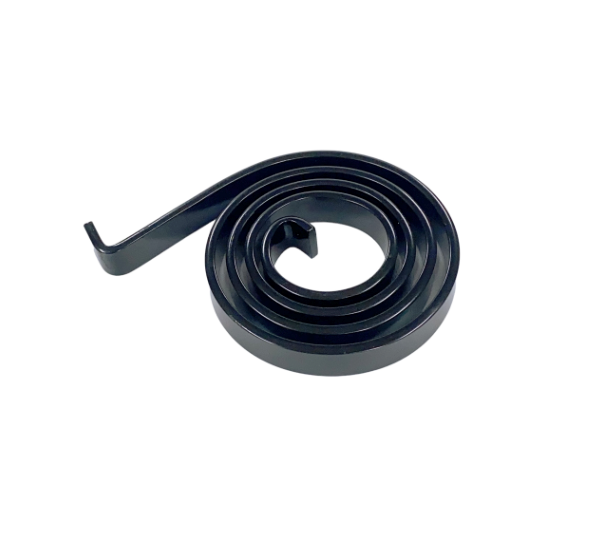

A spiral flat spring (also known as a clock spring, power spring, or flat spiral spring) is a type of spring made from a flat strip of material wound into a spiral shape. Unlike helical springs, which are coiled vertically, spiral flat springs store and release energy through rotational motion.
Key Features of Spiral Flat Springs:
- Material:
- Usually made of high-carbon steel, stainless steel, or phosphor bronzefor flexibility and fatigue resistance.
- Sometimes coated for corrosion resistance.
- Design:
- Flat strip wound in an Archimedean spiral(constant gap between coils) or involute spiral (variable gap).
- One end is fixed to a central arbor (shaft), and the other is anchored to a housing.
- Energy Storage:
- Works on torsional (rotational) energy—unwinds when released.
- Follows Hooke’s Lawfor rotational springs:
T = k \cdot \thetaT=k⋅θ
where:
- TT= Torque (Nm)
- kk= Spring rate (Nm/rad)
- \thetaθ= Angular displacement (radians)
- Self-Retracting Mechanism:
- Often used in applications where the spring must rewind automatically(e.g., tape measures, retractable cords).
Types of Spiral Flat Springs:
| Type | Description | Common Uses |
| Power Spring | Stores high energy in tight spaces | Toy cars, wind-up mechanisms |
| Constant-Force Spring | Delivers near-constant torque | Retractable badge reels, seatbelts |
| Hairspring (Balance Spring) | Precision micro-spring | Mechanical watch regulation |
| Motor Spring | Used for mechanical drives | Clockwork mechanisms, gramophones |
Applications:
- Retractable Devices: Tape measures, dog leashes, vacuum cord reels.
- Timekeeping: Mainspring in clocks/watches.
- Automotive: Seatbelt retractors, starter motors.
- Toys & Gadgets: Wind-up toys, self-winding mechanisms.
Advantages & Disadvantages:
| Pros | Cons |
| ✔ High energy storage in compact space | ✖ Limited angular rotation (typically < 360°) |
| ✔ Smooth torque delivery | ✖ Can suffer from fatigue over time |
| ✔ Self-retracting capability | ✖ Requires precise manufacturing |
Design Considerations:
- Strip Thickness: Affects stiffness and torque.
- Number of Turns: Determines energy storage capacity.
- Housing Design: Prevents over-extension and buckling.
Would you like details on calculations (torque, stress analysis) or manufacturing methods for spiral flat springs?
