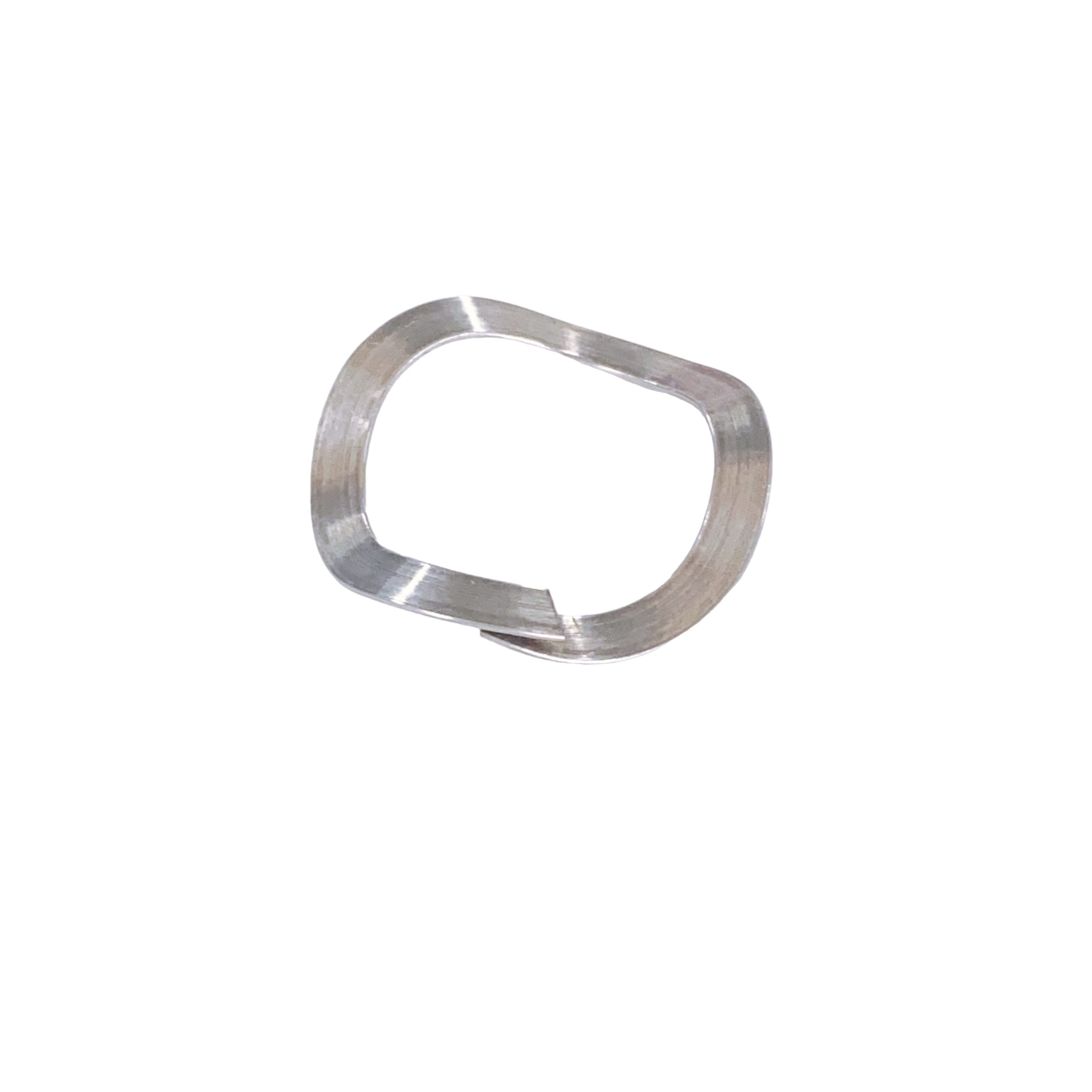

Overlap Type Wave spring
Wave Spring, also known as a wave washer or coiled wave spring, is a special type of compression spring with the following characteristics:
Key Features
- Wave-shaped structure: Made of multiple wavy metal rings, typically formed from flat metal strips
- Space-efficient: Saves 50–70% axial space compared to traditional coil springs
- Uniform load distribution: Provides evenly distributed force
- Low working height: Can operate at very small compression heights
Common Types
- Single-layer wave spring: Basic type, made of a single metal layer
- Multi-layer wave spring: Multiple wave springs stacked for higher load capacity
- Nested wave spring: Multiple wave springs concentrically nested
Applications
- Automotive industry (clutches, transmissions)
- Medical devices
- Aerospace
- Electronics (connectors, switches)
- Industrial machinery
Advantages
- Space-saving design
- Precise load control
- Reduced number of components
- Lower overall costs
Wave springs are typically made of stainless steel, high-carbon steel, or special alloys and can be customized for specific application requirements.
